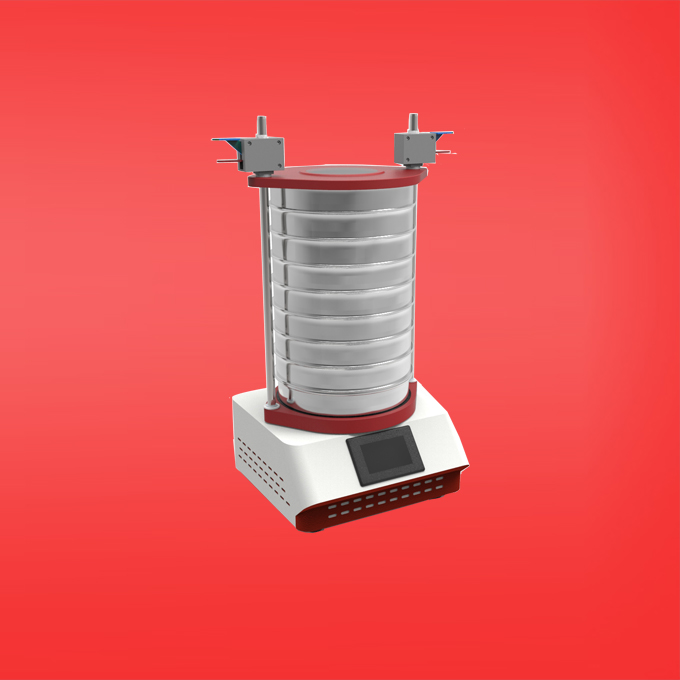

AF100S 3D analytical sieve

Details

AF100S mainly sieves powder, loose materials, suspended solids.
Sample download
Product Description

AF100s  3D analytical sieve

AF100s mainly sieves powder, loose materials, suspended solids. It is a three-dimensional vibratory screening instrument, that is, horizontal vibration and up and down vibration, different from other domestic screening of a single vibration mode. The instrument can dry sieve and wet sieve, and increase the diversity of sample sieving. Convenient screen cover fast fastening device, greatly improves the sieving efficiency. The design of 100 mm, 150 mm, 200 mm, 300 mm sieves allows customers to choose the sieve components of samples freely to achieve the function of multi-machine integration. Multi-functional operation panel, easy to operate, different amplitudes, intermittent time adjustment, suitable for different samples sieving.



Application field:

Mineral Powder        Seed and Cereals

Soil                   Building materials

Chemicals             Fertilizer

Plastic                Washing powder



Technical information

Technical parameter

3D analytical sieve AF100S

Sample type

Powder, loose materials, suspended solids

measuring range

20um-25mm

Feeding quantity

6kg

Maximum series

9 series

Max. mass of sieve stack

10kg

Amplitude Adjustment range

0.2-3mm

Time display Adjustment range

Digital 1-99min

interval time

5s-99s

Storage parameters

9 groups

Sieving method

dry、wet

Sieve tray diameter

100mm、150mm、200mm、300mm

Analysis sieve material

Stainless steel、nylon

Instrument size

3D analytical sieve AF100s

W×H×D

565mm×865mm×405mm

Weight net

Approx.50kg

Electrical parameters

220V 200W





Performance advantage:

Three dimensional throwing vibration effect

100mm, 150mm, 200mm and 300mm diameter analysis sieve can be placed.

measuring range:20um-25mm

Maximum sievable 6kg sample

Dry and wet , suitable for different samples.

9 stage sieve tower can be placed

Plug and pull design of wet sieve device

It can store 9 sets of parameters, set up intermittent mode, and improve the efficiency and standardization of the instrument.

The comfortable fastening device can quickly lock and loosen the analysis sieve.

Large size LCD touch screen, easy to operate
